Model-based Diagramming

Most diagramming tools work with simple shapes and lines - what you draw is what you get. Revision takes a fundamentally different approach by building a structured model behind the scenes that powers smarter architecture documentation.

Traditional Diagramming Limitations​

In tools like Visio or draw.io, when you draw a box labeled "User Service" and connect it with an arrow to "Database," you're creating isolated visual elements. Each diagram exists independently:

  • No reuse - Drawing the same component multiple times across different diagrams
  • No consistency - Changes to a component require manual updates everywhere it appears
  • No understanding - The tool doesn't know that "User Service" in diagram A is the same as "User Service" in diagram B
  • Limited analysis - No way to understand system relationships or dependencies beyond what's visible in a single diagram

The Model-Based Approach​

Diagrams are views of a single shared model, not independent drawings. In Revision, everything you draw is part of an underlying architectural model. When you create a "User Service" component, you're defining it once in the model. When you use it in multiple diagrams, you're placing different views of the same component.

Advantages of Model-Based Architecture​

Component Reuse​

  • Define once, use everywhere - Create a component and use it across multiple diagrams
  • Consistent updates - Changes to a component automatically reflect everywhere it's used
  • Single source of truth - No confusion about whether components in different diagrams represent the same system

Dependency Understanding​

Building a model enables powerful dependency analysis that goes far beyond what traditional diagrams can offer:

  • Discover connections - See all systems that depend on a particular component
  • Impact analysis - Understand what might be affected when you change or remove a component
  • Integration mapping - Visualize the complete integration landscape across your architecture
  • Risk assessment - Identify critical components with many dependencies

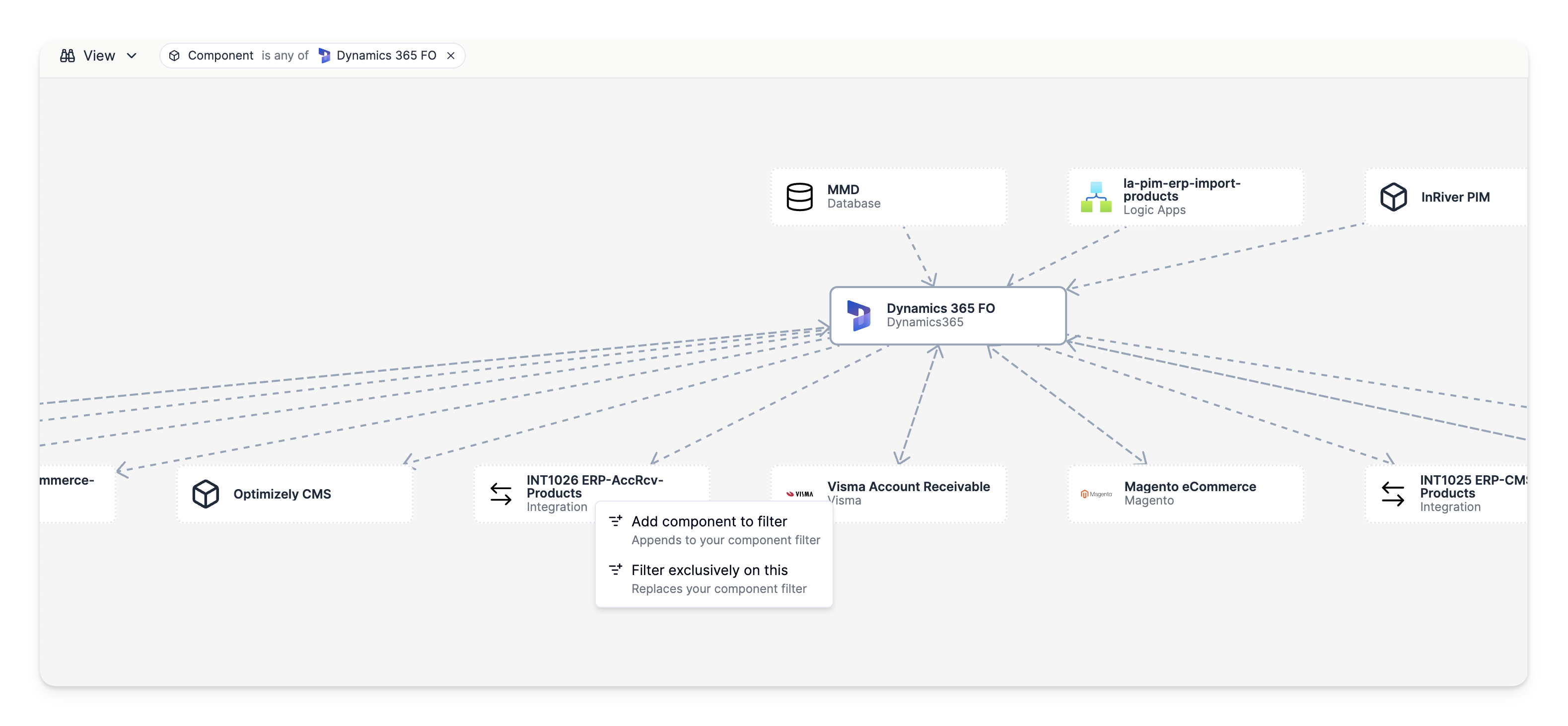

Dependency graph visualization showing interconnected system components and their relationships

This model-based approach enables you to answer questions like:

  • "What systems would be affected if this database goes down?"
  • "Which applications depend on this API service?"
  • "What's the blast radius of changes to this component?"

How the Model Works​

Components as Building Blocks​

The model is built from components that represent your systems, services, databases, and other architectural elements. Each component is defined once with its properties, attributes, and metadata.

Relations Define Dependencies​

Relationships between components define how your systems interact. These aren't just visual arrows - they carry semantic meaning about the type of interaction, direction of communication, and integration patterns.

Diagrams as Views​

Diagrams become views into your model, showing specific aspects or levels of your architecture. You can create multiple diagrams that show different perspectives of the same components and relationships:

  • System context diagrams showing high-level interactions
  • Technical diagrams showing detailed implementation
  • Dependency graphs showing just the relationships between specific components
