MCP Server

The Revision MCP (Model Context Protocol) server provides read-only access to your architecture model, enabling AI agents and external tools to analyze and understand your architecture data.

With the MCP server, you can interact with your Revision model using natural language for analysis, for instance:

  • List all archived components used in our active diagrams,
  • Show me components of type "Server" and their attributes,
  • What diagrams contain external systems?,
  • and so on!

Setup​

Endpoint​

https://<your-organization>.revision.app/api/external/mcp

The server is of the HTTP type.

Authentication​

All MCP requests require API key authentication. Include your API key using the Authorization header with Bearer token. You can find more details on the API authentication documentation page.

Example​

As an example, here is how you would set up GitHub's Copilot CLI with the Revision MCP server, though the /mcp command:

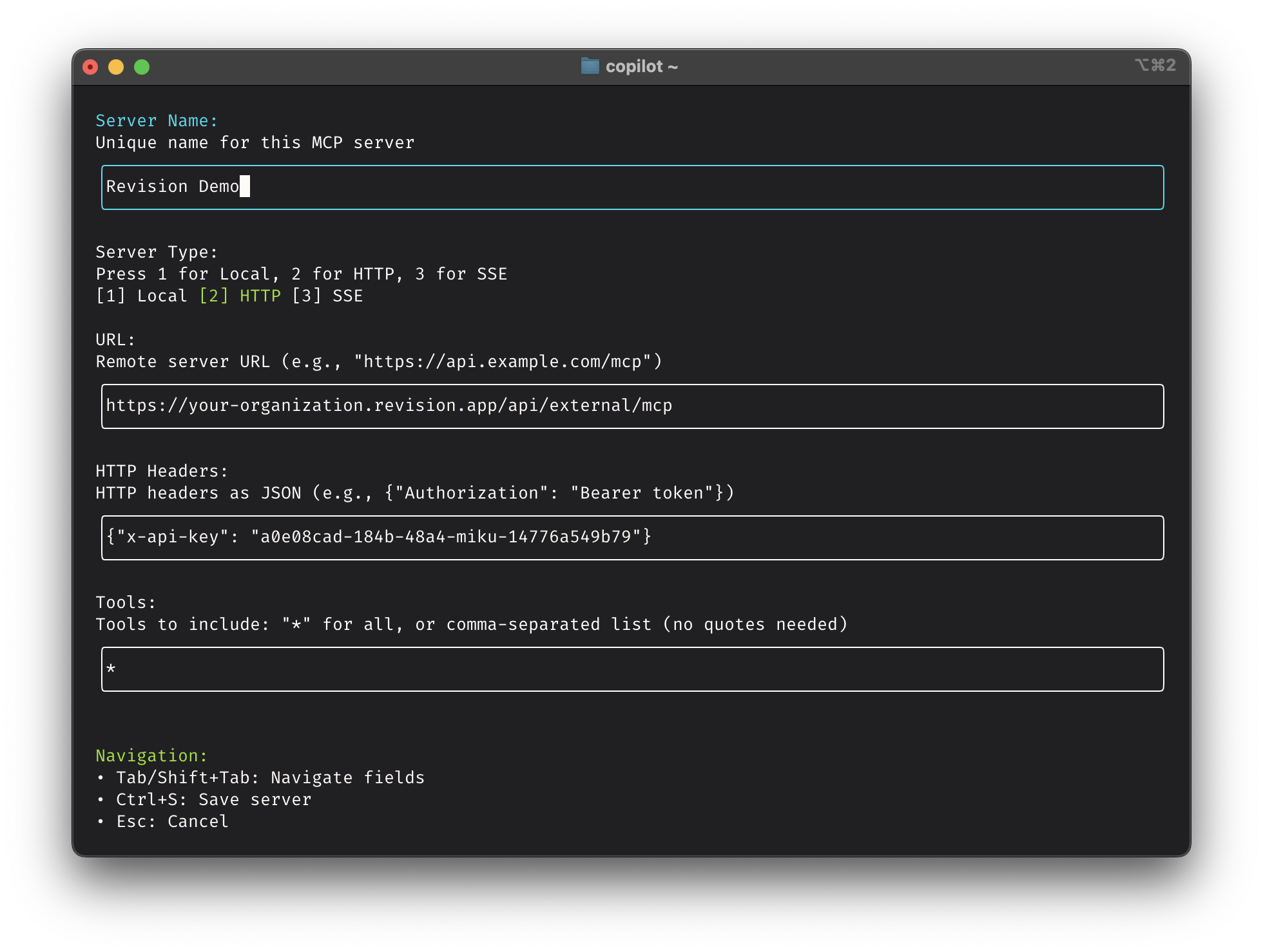

MCP Setup Example showing GitHub Copilot CLI configuration

Available Tools​

The following read-only tools are currently available:

  • attributes_list - List all attributes in your organization
  • components_list - List all components in your organization
  • diagrams_list - List all diagrams in your organization
  • tags_list - List all tags in your organization
  • types_list - List all available component types

Details surrounding the response formats are available on the resources' respective API pages:
